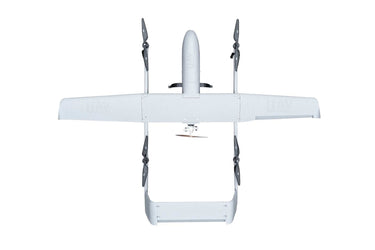

SKYEYE SV360 2024 3600MM FULL CARBON FIBER UAV VTOL Drones
Expected delivery within 14~21 days after payment.
In the rapidly evolving world of unmanned aerial systems, a plethora of technologies and components are coming together to create some truly remarkable machines.
The VTOLs Drones is a prime example of innovation in this field. Standing for Vertical Take-Off and Landing, these drones have the unique ability to take off, hover, and land vertically, without the need for a traditional runway. This makes them highly versatile and suitable for a wide range of applications, from surveillance and mapping to search and rescue operations. Whether it's a small, agile VTOL drone for urban environments or a larger, heavy-lift model for industrial use, the technology is constantly evolving.
For more information about SkyEye SV360, please visit the official website
https://www.skyeyeuav.com/products/skyeye-vtol-fixed-wing-large-drone-uav-sv360
Download:User manual
Note:Production cycle: 7-15 working days (ask customer service about production schedule before ordering)
The SKYEYE drone, a remarkable new addition to the world of unmanned aerial vehicles in 2024, is truly a force to be reckoned with. With unparalleled precision and performance, the SKYEYE drone delivers unmatched results in the field.
This VTOL (Vertical Take-Off and Landing) drone stands out with its impressive 3.6-meter wingspan, giving it a majestic presence in the sky. With a substantial 40KG large payload capacity, it is capable of handling a wide variety of tasks and equipment. Whether it's for surveillance, mapping, or transporting goods, the SKYEYE drone can handle the load with ease. Featuring cutting-edge technology and precision engineering, the SKYEYE drone is a top choice for professionals seeking optimal performance and efficiency.
- Wingspan: 3600 mm
- Length: 2420 mm
- Wing Area: 132 dm²
- Maximum Take-Off Weight: 40 KG
- Empty Weight: 11 KG
- Flight Time: 3-5 h
- Maxium Speed: 33 m/s
- Cruise Speed: 30 m/s
- Stall Speed: 24 m/s
- Range: 300 KM
- Payload Capacity: 8 KG
- Fuel Tank: 11 L
- Payload Bay: 560*260*270 mm
One of its notable features is its exceptional endurance. With a flight time of 3 to 5 hours, it enables longer operations without frequent landings or recharges. This increased flight time provides users with enhanced flexibility and efficiency in their aerial tasks.
Engine PNP version:
- EME 70AC Engine With Auto Starter x 1
- T-motor V807 170V (VTOL Motors) x 4 12s
- T-motor 180A ESC x 4
- Savox SC-1256TG x 4
- Savox SC-1251MG x 2
- Sail 23x9 High Power Propeller x 1
- T-motor G29″ Propeller (Pairs) x 2
- PairsMT90 UAV Pitot Tube x 1
- Skyeye SV360 VTOL Kit x 1
Motor PNP version:
- Dualsky GA6000.8 180RPM/V Brushless Motor x 1
- Dualsky XC13036HV 130A High Voltage ESC x 1
- T-motor V807 170V (VTOL Motors) x 4 12s
- T-motor 180A ESC x 4
- Savox SC-1256TG x 3
- Savox SC-1251MG x 2
- Sail 23x9 High Power Propeller x 1
- T-motor G29″ Propeller (Pairs) x 2
- PairsMT90 UAV Pitot Tube x 1
- Skyeye SV360 VTOL Kit x 1
The measurements of the engine compartment.
Length=95cm Width=26cm Hight=25cm
Propulsion Section
EME 70CC
Walbro CarbC
eramic coated cylinders
NSK main bearingsIKO rod bearings
EME HV Ignition (2-cell LiFe or Lipo compatible)
Only 250mm Plug Cap to Plug Cap
Same foot print as EME55/60 (DLE55)
Same prop bolt pattern as EME55/60 (DLE55)
18 Month warranty serviced right here by Mile High RC.
With electric start
Propeller model gasoline
Shop Now
Q2434 Quick Release
Using T-Motor for fast disassembly and rapid blade assembly
