SunnySky X Series V3 X2814 V3 Brushless Motors

$40.00
Shipping calculated at checkout.
SSX2814-900
TYPE: KV900

Expected delivery within 7-15 days after payment;

Customers who can not place an order please contact us;

Tag : Brushless Motors , High Performance Motors , SunnySky X Series
TYPE: KV900

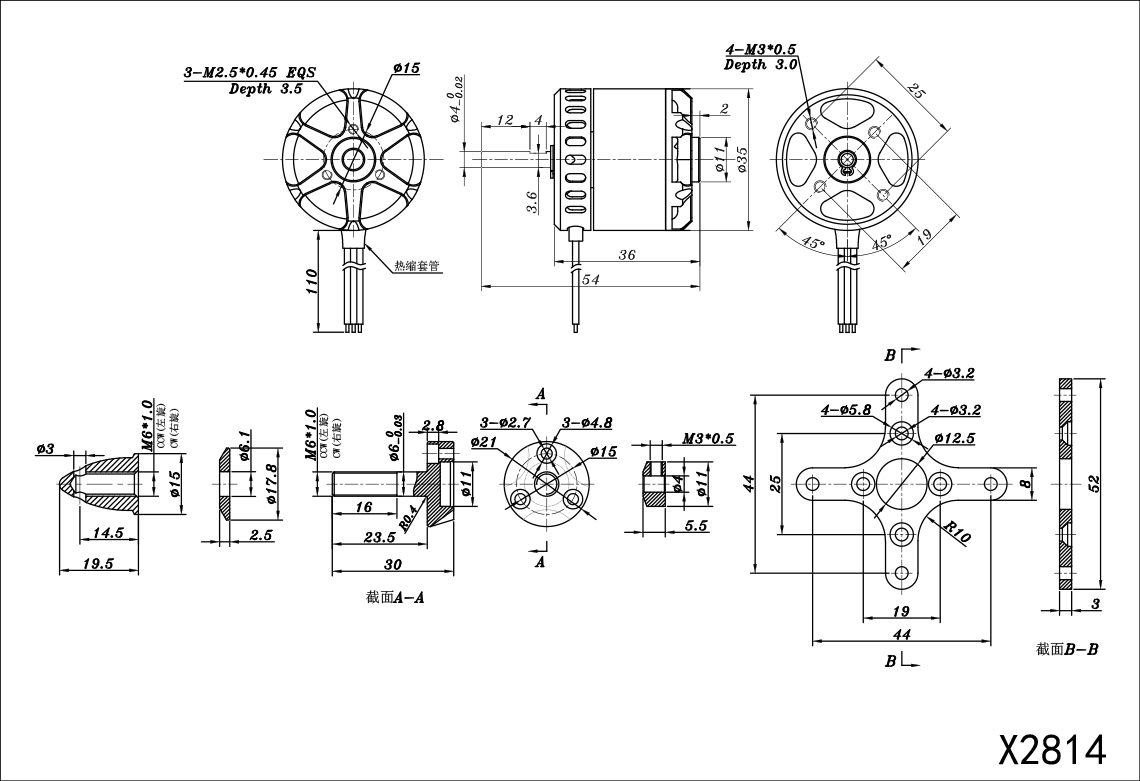

Stator Diameter 28mm Rotor Diameter 35mm
Stator Thickness 14mm Body Length 36mm
No.of Stator Slots 12 Max Lipo Cell 3-4S
No.of Rotor Poles 14 ESC 40-60A
Motor Kv 900 Recommended Prop(inch) APC11*5.5/APC13*6.5/APC11*8/APC13*8
No-load current 1.2A/10V
 Weight for aerobatics airplane
1200g-1400g (3S APC13*6.5\APC13*8) (4S APC11*5.5\APC11*7\APC11*8)
Motor Resistance 33.6mΩ Weight for 3D airplane 800g-1200g (3S APC13*6.5\APC13*8)
Max Continuous Current 50A/30s
Max Continuous Power 680W
Weight 108g

Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
APC13*6.5 11.1 4.7 500 52.17 9.58 3913 75℃ 10min
8.2 750 91.02 8.24 4724
12.7 1000 140.97 7.09 5424
17.3 1250 192.03 6.51 6088
22.8 1500 253.08 5.93 6536
28.6 1750 317.46 5.51 7029
38.6 2150 428.46 5.02 7668
APC13*8 11.1 5.1 500 56.61 8.83 3693 83℃ 10min
8.9 750 98.79 7.59 4506
13.7 1000 152.07 6.58 5234
19.1 1250 212.01 5.90 5751
25.5 1500 283.05 5.30 6295
32.6 1750 361.86 4.84 6770
40.9 2000 453.99 4.41 7205
44.5 2180 493.95 4.41 7463
APC11*5.5 14.8 4.3 500 63.64 7.86 5430 65℃ 10min
7 750 103.6 7.24 6576
10.8 1000 159.84 6.26 7460
14.8 1250 219.04 5.71 8219
19.1 1500 282.68 5.31 9100
25.3 1750 374.44 4.67 9660
30.5 2000 451.4 4.43 10310
37.2 2299 550.56 4.18 10978
APC11*8 14.8 4.7 500 69.56 7.19 4830 94℃ 3min
8.3 750 122.84 6.11 5852
12.3 1000 182.04 5.49 6720
16.9 1250 250.12 5.00 7512
22.3 1500 330.04 4.54 8166
28.8 1750 426.24 4.11 8727
34.5 2000 510.6 3.92 9307
45.5 2320 673.4 3.45 10221

1000KV:

Stator Diameter 28mm Rotor Diameter 35mm
Stator Thickness 14mm Body Length 36mm
No.of Stator Slots 12 Max Lipo Cell 3-4S
No.of Rotor Poles 14 ESC 40-60A
Motor Kv 1000 Recommended Prop(inch) APC11*5.5/APC13*6.5/APC12*6/APC12*8
No-load current 1.3A/10V Weight for aerobatics airplane  1200g-1400g (3S APC12*6\APC12*8) (4S APC11*5.5)
Motor Resistance 35.5mΩ Weight for 3D airplane 800g-1200g (3S APC13*6.5\APC12*6\APC12*8)
Max Continuous Current 55A/30s
Max Continuous Power 750W
Weight 113g

Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
APC13*6.5 11.1 5 500 55.5 9.01 3960 76℃ 10min
8.6 750 95.46 7.86 4832
13.2 1000 146.52 6.83 5590
18.2 1250 202.02 6.19 6203
24 1500 266.4 5.63 6767
31 1750 344.1 5.09 7330
39 2000 432.9 4.62 7780
46.7 2287 518.37 4.41 7979
APC12*6 11.1 5.4 500 59.94 8.34 4100 60℃ 10min
9.3 750 103.23 7.27 5580
14 1000 155.4 6.44 6290
19 1250 210.9 5.93 6970
25 1500 277.5 5.41 7620
31.5 1750 349.65 5.01 8157
41.3 2050 458.43 4.47 8687
APC12*8 11.1 5.6 500 62.16 8.04 4205 65 10min
9.1 750 101.01 7.43 5061
15.2 1000 168.72 5.93 5862
20.4 1250 226.44 5.52 6475
27.8 1500 308.58 4.86 7044
35.1 1750 389.61 4.49 7631
44.9 2070 498.39 4.15 8293
APC11*5.5 11.1 5.6 500 62.16 8.04 5338 71℃ 10min
9.55 750 106.005 7.08 6476
14 1000 155.4 6.44 7438
19.4 1250 215.34 5.80 8304
25.4 1500 281.94 5.32 9014
29.6 1655 328.56 5.04 9488
14.8 4.4 500 65.12 7.68 5327
7.5 750 111 6.76 6481
11 1000 162.8 6.14 7420
15.2 1250 224.96 5.56 8345
19.7 1500 291.56 5.14 8984
24.8 1750 367.04 4.77 9652
30.2 2000 446.96 4.47 10209
45.6 2556 674.88 3.79 11676

1250KV:

Stator Diameter 28mm Rotor Diameter 35mm
Stator Thickness 14mm Body Length 36mm
No.of Stator Slots 12 Max Lipo Cell 3-4S
No.of Rotor Poles 14 ESC 50-60A
Motor Kv 1250 Recommended Prop(inch) APC11*5.5/APC1050/APC9060
No-load current 1.7A/10V  Weight for aerobatics airplane  1000g-1300g (4S APC1060\APC9060\APC8060) (3S APC11*5.5)
Motor Resistance 21.3mΩ
Max Continuous Current 55A/30s
Max Continuous Power 815W
Weight 110g

Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
APC11*5.5 11.1 6 500 66.6 7.51 5410 57℃ 10min
10.3 750 114.33 6.56 6557
14.9 1000 165.39 6.05 7512
20.3 1250 225.33 5.55 8260
27 1500 299.7 5.01 9139
33.9 1750 376.29 4.65 9692
45.5 2060 505.05 4.08 10624
APC1050 11.1 6.6 500 73.26 6.83 6268 76℃ 10min
10.7 750 118.77 6.31 7536
16.1 1000 178.71 5.60 8706
22.25 1250 246.975 5.06 9629
29 1500 321.9 4.66 10417
34.6 1670 384.06 4.35 11201
14.8 5.1 500 75.48 6.62 6234
8.1 750 119.88 6.26 6534
12.7 1000 187.96 5.32 8759
17.1 1250 253.08 4.94 9635
22.4 1500 331.52 4.52 10427
28.1 1750 415.88 4.21 11192
35.8 2000 529.84 3.77 11899
41.15 2250 609.02 3.69 12544
53.8 2650 796.24 3.33 13778
APC9060 14.8 6 500 88.8 5.63 6795 62℃ 10min
10 750 148 5.07 8200
14.7 1000 217.56 4.60 9379
20.1 1250 297.48 4.20 10336
26.2 1500 387.76 3.87 11271
32.9 1750 486.92 3.59 12115
43.3 2000 640.84 3.12 12926
52.3 2360 774.04 3.05 13942

1400KV:

Stator Diameter 28mm Rotor Diameter 35mm
Stator Thickness 14mm Body Length 36mm
No.of Stator Slots 12 Max Lipo Cell 3-4S
No.of Rotor Poles 14 ESC 80A
Motor Kv 1400 Recommended Prop(inch) APC8060/APC9060
No-load current 2.3A/10V Weight for aerobatics airplane  1000g-1400g (4S APC9060\APC8060)
Motor Resistance 15.9mΩ
Max Continuous Current 80A/30s
Max Continuous Power 1180W
Weight 109g

Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
APC8060 14.8 8.2 500 121.36 4.12 8282 70℃ 3min
13.9 750 205.72 3.65 9958
21.3 1000 315.24 3.17 11388
30.2 1250 446.96 2.80 12540
40.9 1500 605.32 2.48 13893
54.6 1750 808.08 2.17 14775
70.4 2024 1041.92 1.94 16088
APC9060 6.3 500 93.24 5.36 6825 75℃ 1min30S
10.7 750 158.36 4.74 8285
15.9 1000 235.32 4.25 9333
21.8 1250 322.64 3.87 10370
31.2 1500 461.76 3.25 11200
42.2 1750 624.56 2.80 12072
58.4 2000 864.32 2.31 12804
71.4 2250 1056.72 2.13 15171
