I. Definition An Unmanned Aerial Vehicle (UAV), commonly known as a drone, is an aircraft that operates without a human pilot on - board. It can be controlled remotely by an operator on the ground or fly autonomously through pre - programmed flight plans, using a combination of sensors, GPS, and onboard flight control systems.
II. Components 1. Flight Control System - This is the “brain” of the UAV. It processes data from various sensors such as gyroscopes, accelerometers, and magnetometers to maintain the drone's orientation and stability. For example, a gyroscope measures the rate of rotation of the UAV, allowing the flight control system to adjust the motor speeds to keep the drone level during flight. 2. Power System - UAVs can be powered by different sources. Battery - powered UAVs are popular for their quiet operation and ease of use, especially in smaller consumer - grade drones. Lithium - polymer (Li - Po) batteries are commonly used due to their high energy - to - weight ratio. Larger UAVs, especially those used for industrial or military applications, may be powered by internal combustion engines, providing more power for longer - range and heavier - payload flights. 3. Propulsion System - Most UAVs use propellers driven by electric motors. The number of propellers can vary; quad - copters have four, hex - copters have six, and octo - copters have eight. Each propeller's speed can be independently controlled by an electronic speed controller (ESC), which is in turn controlled by the flight control system. This allows for precise control of the UAV's movement, such as hovering, ascending, descending, and changing directions.

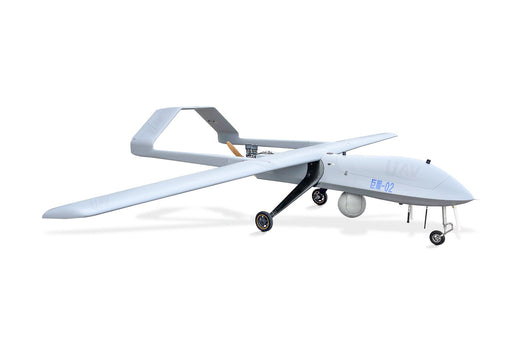

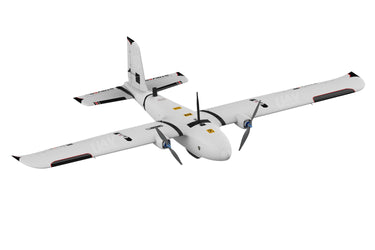

III. Types of UAVs 1. Multi - rotor UAVs - Quad - copters: The most common type of multi - rotor UAV. They are relatively easy to fly and control, making them popular for hobbyists and beginners. Their four - propeller design provides stability and the ability to hover in place, which is useful for applications like aerial photography and videography. - Hex - copters and Octo - copters: These multi - rotor UAVs are often used for heavier payload applications. With more propellers, they can generate more lift, allowing them to carry larger cameras, sensors, or other equipment. They are also more stable in windy conditions compared to quad - copters. 2. Fixed - wing UAVs - Similar to traditional airplanes, fixed - wing UAVs have a rigid wing structure. They are more efficient for long - range flights as they can cover large distances with less energy consumption compared to multi - rotor UAVs. They are commonly used for mapping large areas, surveillance over long perimeters, and agricultural applications such as crop spraying over large fields. However, they require a runway or a catapult for take - off and a suitable landing area. 3. Hybrid UAVs - These UAVs combine the features of multi - rotor and fixed - wing UAVs. For example, some hybrid UAVs can take off and land vertically like a multi - rotor UAV, which is convenient in areas with limited space, and then transition to fixed - wing flight for efficient long - range travel. This type of UAV is useful for applications that require both vertical take - off and landing capabilities and long - distance flight.
IV. Applications 1. Aerial Photography and Videography - UAVs equipped with high - resolution cameras and stabilized gimbals can capture stunning aerial views. They offer a unique perspective that was previously difficult and expensive to obtain. Professional photographers and filmmakers use them to create dynamic shots for movies, commercials, and documentaries. 2. Agriculture - In precision agriculture, UAVs are used for crop monitoring. They can detect crop health issues such as nutrient deficiencies, water stress, and pest infestations using multispectral or thermal imaging sensors. Additionally, UAVs can be used for targeted spraying of pesticides and fertilizers, reducing chemical waste and environmental impact. 3. Industrial Inspection - UAVs are used to inspect infrastructure such as power lines, wind turbines, and bridges. They can access hard - to - reach areas, reducing the need for manual inspections that can be dangerous and time - consuming. For example, a UAV can fly close to a wind turbine blade to detect cracks or other damages without the need for a technician to climb the turbine. 4. Search and Rescue - In search and rescue operations, UAVs can quickly cover large areas. They can be equipped with thermal imaging cameras to detect the heat signatures of missing persons, even in low - light or adverse weather conditions. This helps rescuers locate victims more efficiently. 5. Military and Defense - UAVs have been widely adopted by military forces. They are used for surveillance, reconnaissance, and even targeted strikes. Military UAVs can fly over enemy territory without putting human pilots at risk, providing valuable intelligence information.
V. Challenges and Regulations 1. Technical Challenges - Battery Life: Limited battery life is a major constraint for many UAVs, especially those used for long - range or extended - duration missions. Research is ongoing to develop more efficient battery technologies or alternative power sources. - Weather Sensitivity: UAVs are affected by weather conditions such as strong winds, rain, and fog. High winds can make it difficult for a UAV to maintain its position, and rain and fog can reduce the effectiveness of sensors and cameras. 2. Regulatory Challenges - Governments around the world have implemented regulations for UAV operation. These regulations cover aspects such as flight altitude limits, registration requirements, and restricted airspace. For example, in many countries, UAVs must not fly above a certain altitude (usually around 400 feet) in non - controlled airspace, and operators may need to register their UAVs and obtain a license to fly in certain areas.
