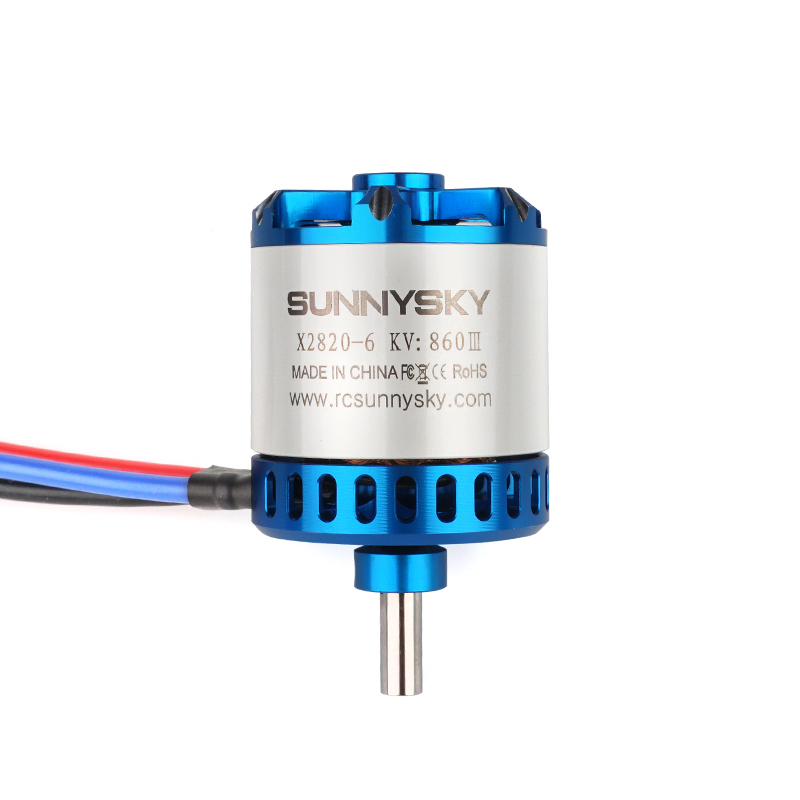

SunnySky X Series V3 X2820 V3 Brushless Motor, blue and silver design, with visible wiring and specifications printed on the body. SunnySky X Series V3 X2820 V3 Brushless Motor, blue and silver design, with visible wiring and specifications printed on the body.
NaN 4

SUNNSKY

SunnySky X Series X2820 V3 Brushless Motors

$44.60
Shipping calculated at checkout.
SSX2820-570
TYPE: KV570

Expected delivery within 7-15 days after payment;

Customers who can not place an order please contact us;

Tag : Brushless Motors , high performance motors , SunnySky X Series , V3 X2820
TYPE: KV570

KV570:

Specifications X2212-III
Stator Diameter 22mm 定子外径
Stator Thickness 12mm 定子厚度
No.of Stator Slots 12  定子槽数
No.of Rotor Poles 10  转子极数
Motor Kv 2450  电机KV
NO-Load Current(A/10V) 1.7A 空载电流
Motor Resistance 27mΩ 电机电阻
Max Continuous Current 32A/30s 最大连续电流
Max Continuous Power 355w 最大连续功率
Veight 58g 重量
Rotor Diameter 27.5mm 转子直径
Body Length 30mm 电机长度
Max Lipo Cel1 3S 支持锂电节数
ESC 30-40A 建议使用电调
Recommend Prop(inch) HQ50456045 推荐螺旋桨规格
螺旋桨(英寸) 电压(V) 电流(A) 拉力(g) 功率(W) 力效(g/) 转速(RPM) 全油门负载温度
HQ 5045 11.1  2   100  22.2  4.50  7869
4.6   200  51.06  3.92  11104
7.6   300  84.36  3.56  13380
10.9   400  120.99  3.31  15672
14.6   500  162.06  3.09  17643
18.5   600  205.35  2.92  19187
22.8   700  253.08  2.77  20612
26.7   790  296.37  2.67  21728
12.5  1.8   100  22.5  4.44  7871
4.2   200  52.5  3.81  11117
6.9   300  86.25  3.48  13360
10   400  125  3.20  15629
13.6   500  170  2.94  17657
17.4   600  217.5  2.76  19228
21.5   700  268.75  2.60  20644
25.1   800  313.75  2.55  22127
32.3   950  403.75  2.35  24040  55℃
HQ 6045 11.1  1.8   100  19.98  5.01  6604
3.9   200  43.29  4.62  9215
6.3   300  69.93  4.29  11280
8.9   400  98.79  4.05  12913
12   500  133.2  3.75  14554
15.3   600  169.83  3.53  15901
18.6   700  206.46  3.39  17151
22.1   800  245.31  3.26  18207
25.8   900  286.38  3.14  19243
32.2   1050  357.42  2.94  20642  2nin 70℃

KV860:

Stator Diameter 28mm Rotor Diameter 35mm
Stator Thickness 20mm Body Length 42mm
No.of Stator Slots 12 Max Lipo Cell 3-4S
No.of Rotor Poles 14 ESC 50-60A
Motor Kv 860 Recommended Prop(inch) APC13*6.5/APC13*8/APC12*6/APC12*8
No-load current 1.3A/10V Weight for aerobatics airplane  1400g-2000g(4S APC12*6\APC12*8\APC13*6.5\APC13*8)
Motor Resistance 25.8mΩ Weight for 3D airplane 1100g-1500g(4S APC12*6\APC12*8\APC13*6.5\APC13*8)
Max Continuous Current 65A/30s
Max Continuous Power 960W
Weight 143g
Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
APC13*6.5 11.1 5.1 500 56.61 8.83 3952 79℃ 1min10s
8 750 88.8 8.45 4755
13.1 1000 145.41 6.88 5460
17.9 1250 198.69 6.29 6050
23.3 1500 258.63 5.80 6570
29.6 1750 328.56 5.33 7067
40.3 2150 447.33 4.81 7687
14.8 3.9 500 57.72 8.66 3897
6.7 750 99.16 7.56 4804
10.2 1000 150.96 6.62 5421
13.9 1250 205.72 6.08 6071
18.1 1500 267.88 5.60 6564
22.6 1750 334.48 5.23 7077
27.6 2000 408.48 4.90 7560
33.5 2250 495.8 4.54 8016
40.1 2500 593.48 4.21 8346
47.5 2750 703 3.91 8695
63.2 3350 935.36 3.58 9230
APC13*8 11.1 5 500 55.5 9.01 3710 63℃ 10min
8 750 88.8 8.45 4510
13.5 1000 149.85 6.67 5200
18.2 1250 202.02 6.19 5760
23.8 1500 264.18 5.68 6278
30 1750 333 5.26 6780
43.3 2250 480.63 4.68 7446
APC12*6 14.8 4.3 500 63.64 7.86 4510 88℃ 2min
7.2 750 106.56 7.04 5504
10.6 1000 156.88 6.37 6300
14.4 1250 213.12 5.87 7005
18.7 1500 276.76 5.42 7640
23.3 1750 344.84 5.07 8189
28.9 2000 427.72 4.68 8706
34.9 2250 516.52 4.36 9100
41.9 2500 620.12 4.03 9626
50.4 2769 745.92 3.71 10060
APC12*8 14.8 4.3 500 63.64 7.86 4167 92℃ 2min
7.5 750 111 6.76 5088
11.5 1000 170.2 5.88 5836
15.3 1250 226.44 5.52 6540
20 1500 296 5.07 7140
25.4 1750 375.92 4.66 7676
31.7 2000 469.16 4.26 8200
39.5 2250 584.6 3.85 8700
53.1 2500 785.88 3.18 9175
60 2750 888 3.10 9431

KV1000:

Stator Diameter 28mm Rotor Diameter 35mm
Stator Thickness 20mm Body Length 42mm
No.of Stator Slots 12 Max Lipo Cell 3-4S
No.of Rotor Poles 14 ESC 60-80A
Motor Kv 1000 Recommended Prop(inch) 4S(APC11*5.5\APC11*8) 3S(APC12*6\13*6.5)
No-load current 1.7A/10V  Weight for aerobatics airplane  1400g-1900g (3S APC13*6.5\ APC 12*6\ APC 12*8) (4S APC11*5.5\APC11*7\APC11*8)
Motor Resistance 18.5mΩ Weight for 3D airplane 1100g-1500g (3S APC13*6.5\APC13*8)
Max Continuous Current 70A/1min
Max Continuous Power 1036W
Weight 147g

Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
APC11*5.5 14.8 4.7 500 69.56 7.19 5252 66℃ 10min
7.8 750 115.44 6.50 6510
11.4 1000 168.72 5.93 7498
15.5 1250 229.4 5.45 8279
19.6 1500 290.08 5.17 9010
25.3 1750 374.44 4.67 9668
30.5 2000 451.4 4.43 10247
35.9 2250 531.32 4.23 10896
42.8 2500 633.44 3.95 11310
53.4 2989 790.32 3.78 12300
APC11*8 14.8 4.8 500 71.04 7.04 4700 69℃10min
8.75 750 129.5 5.79 5788
12.7 1000 187.96 5.32 6637
17.1 1250 253.08 4.94 7490
22.9 1500 338.92 4.43 8058
28.6 1750 423.28 4.13 8720
35.2 2000 520.96 3.84 9302
43.4 2250 642.32 3.50 9733
68.8 2760 1018.24 2.71 10950
APC12*6 11.1 5.6 500 62.16 8.04 4520 61℃10min
9.5 750 105.45 7.11 5440
13.8 1000 153.18 6.53 6280
18.7 1250 207.57 6.02 7023
24.4 1500 270.84 5.54 7613
30.8 1750 341.88 5.12 8216
38.1 2000 422.91 4.73 8760
45.3 2290 502.83 4.55 9200

KV2450:

Stator Diameter 28mm Rotor Diameter 35mm
Stator Thickness 20mm Body Length 42mm
No.of Stator Slots 12 Max Lipo Cell 3-4S
No.of Rotor Poles 14 ESC 80A
Motor Kv 1250 Recommended Prop(inch) APC12*6/APC1050/APC9060/APC11*5.5/APC11*8
No-load current 2.5A/10V Weight for aerobatics airplane  1600g (3S APC11*5.5\ APC 11*7\ APC 11*8) (4S APC1050\APC9060)
Motor Resistance 13.1mΩ Weight for 3D airplane 1200g (3S APC11*5.5\APC12*6)
Max Continuous Current 79A/30s Weight for glider 1800g (3S APC11*5.5)
Max Continuous Power 1172W
Weight 144g

Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
APC12*6 11.1 5.7 500 63.27 7.90 4516 70℃ 3min
9.7 750 107.67 6.97 5533
15.3 1000 169.83 5.89 6246
21.2 1250 235.32 5.31 6953
28.5 1500 316.35 4.74 7588
37 1750 410.7 4.26 8120
47.7 2000 529.47 3.78 8676
62 2250 688.2 3.27 9128
72 2600 799.2 3.25 10258
APC1050 14.8 5.4 500 79.92 6.26 6185 75℃ 5min
8.6 750 127.28 5.89 7573
13.7 1000 202.76 4.93 8710
18.5 1250 273.8 4.57 9617
23.4 1500 346.32 4.33 10380
28.5 1750 421.8 4.15 11133
35 2000 518 3.86 11910
42.5 2250 629 3.58 12630
50 2500 740 3.38 13203
69.8 3090 1033.04 2.99 14858
APC9060 14.8 6.6 500 97.68 5.12 6804 67℃ 3min
10.9 750 161.32 4.65 8218
15.8 1000 233.84 4.28 9319
22.9 1250 338.92 3.69 10409
30 1500 444 3.38 11196
38.8 1750 574.24 3.05 12250
52.9 2000 782.92 2.55 12880
70.1 2678 1037.48 2.58 15009
APC11*5.5 14.8 4.9 500 72.52 6.89 5356 70℃ 1min30s
8.1 750 119.88 6.26 6499
11.9 1000 176.12 5.68 7431
16.4 1250 242.72 5.15 8372
21.3 1500 315.24 4.76 8954
27.5 1750 407 4.30 9632
34 2000 503.2 3.97 10212
41.2 2250 609.76 3.69 10895
48.5 2500 717.8 3.48 11310
58.4 2750 864.32 3.18 11800
67.5 3000 999 3.00 12375
79.2 3441 1172.16 2.94 13211
APC11*8 11.1 6.6 500 73.26 6.83 4860 66℃ 3min
11.9 750 132.09 5.68 5830
17.5 1000 194.25 5.15 6730
23.7 1250 263.07 4.75 7474
31.5 1500 349.65 4.29 8133
40.5 1750 449.55 3.89 8712
49.9 2000 553.89 3.61 9265
61 2250 677.1 3.32 9741
70 2460 777 3.17 10233
