SUNNSKY

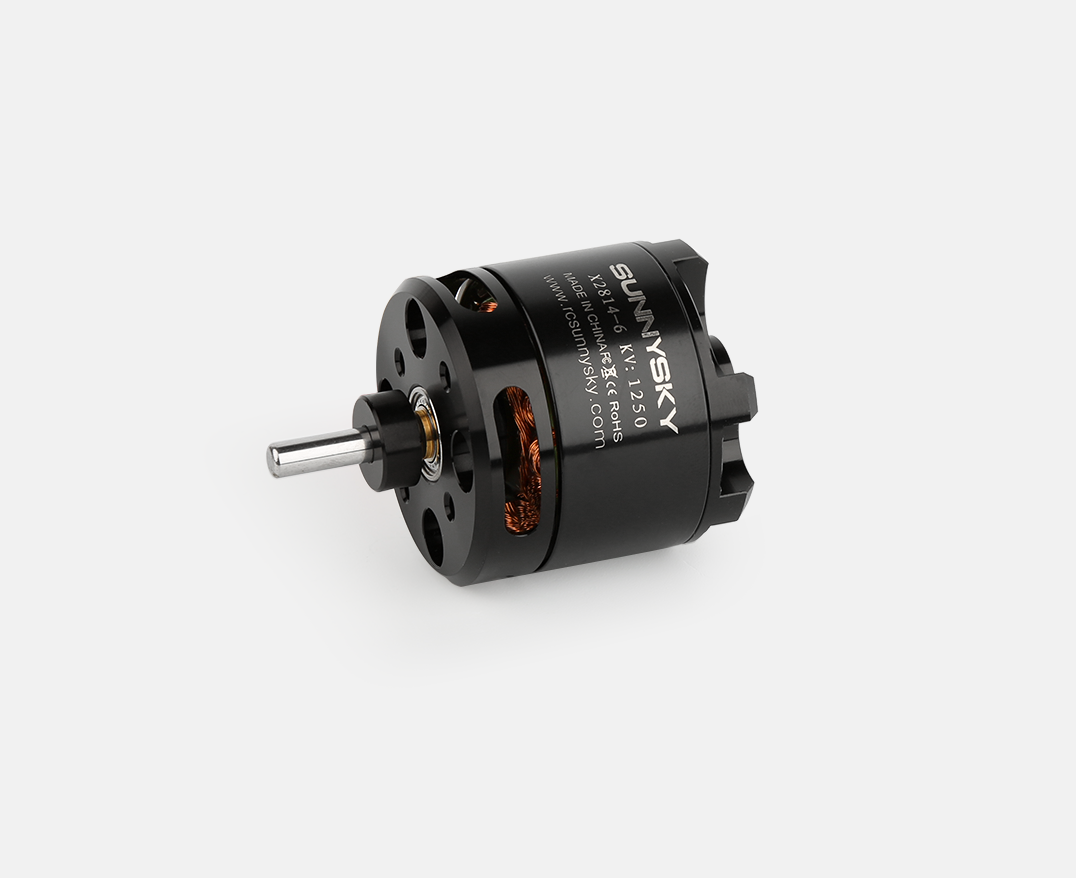

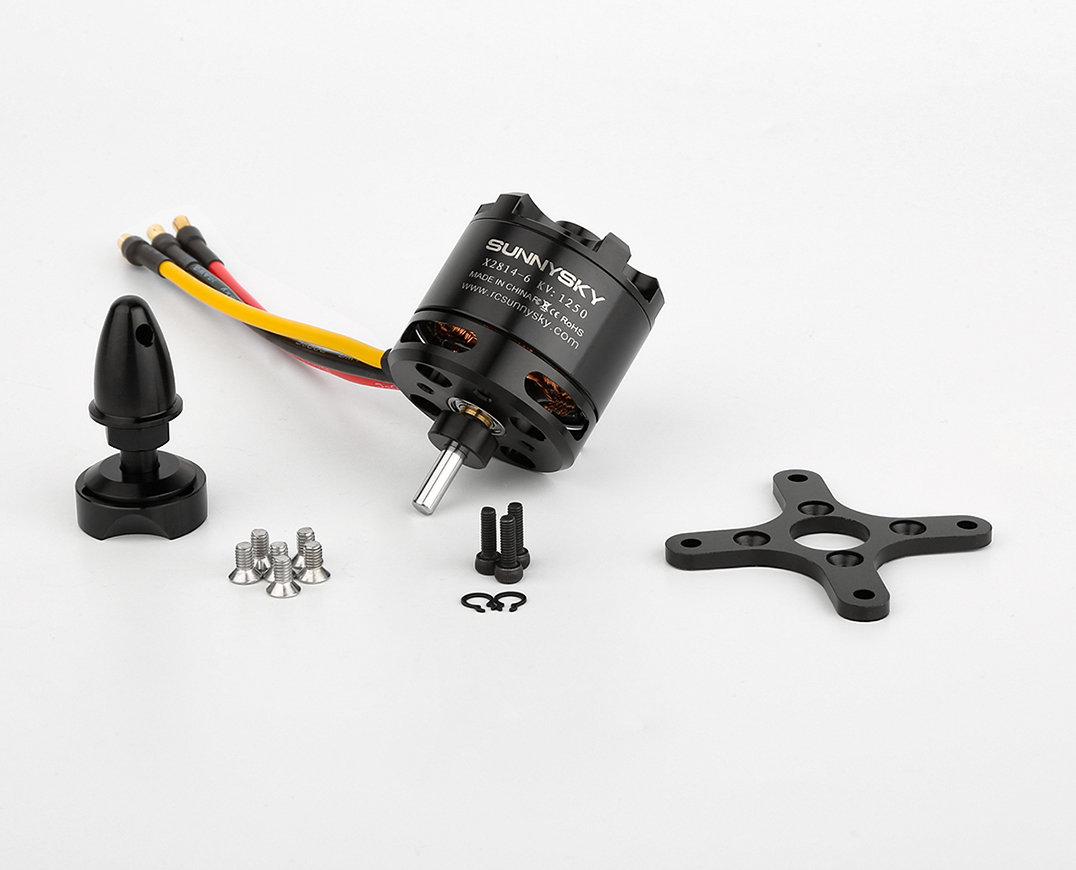

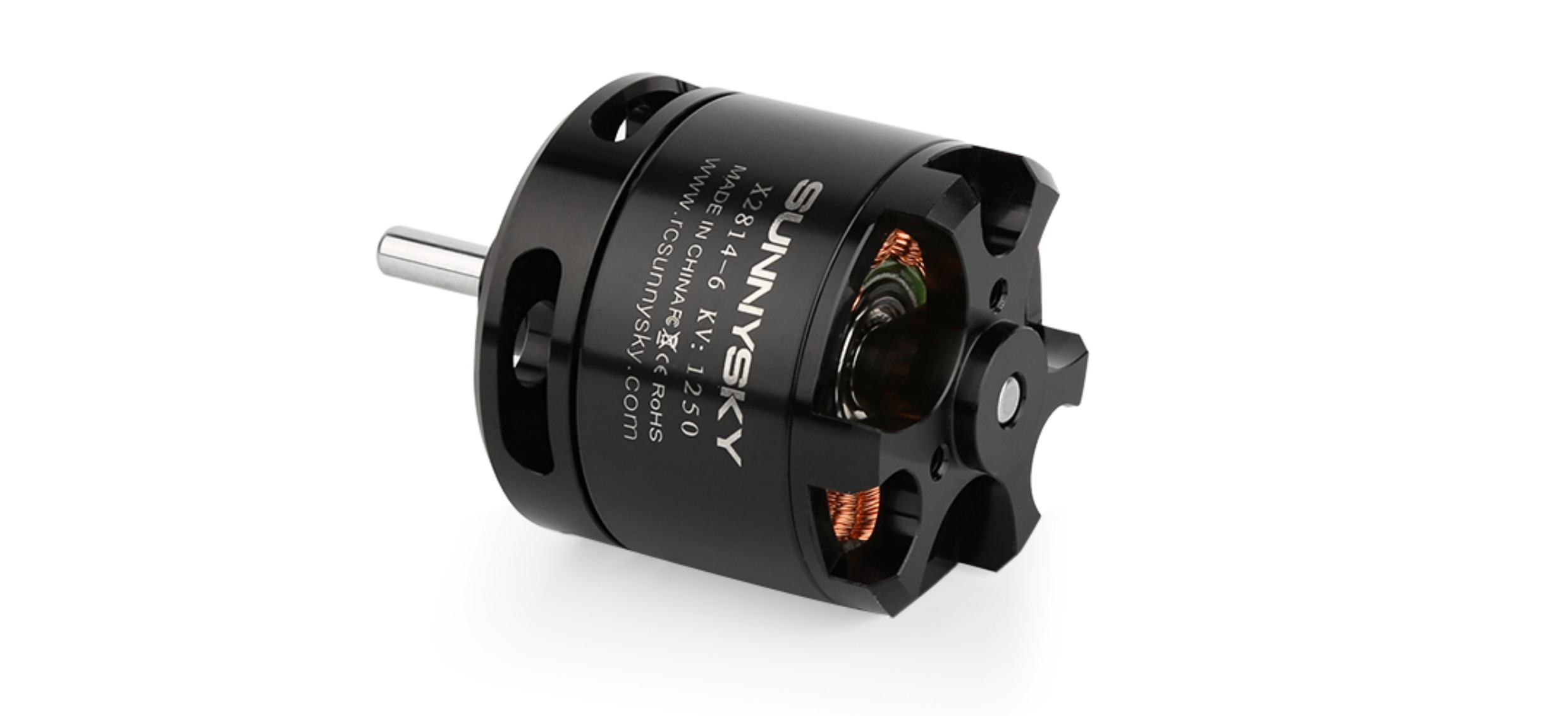

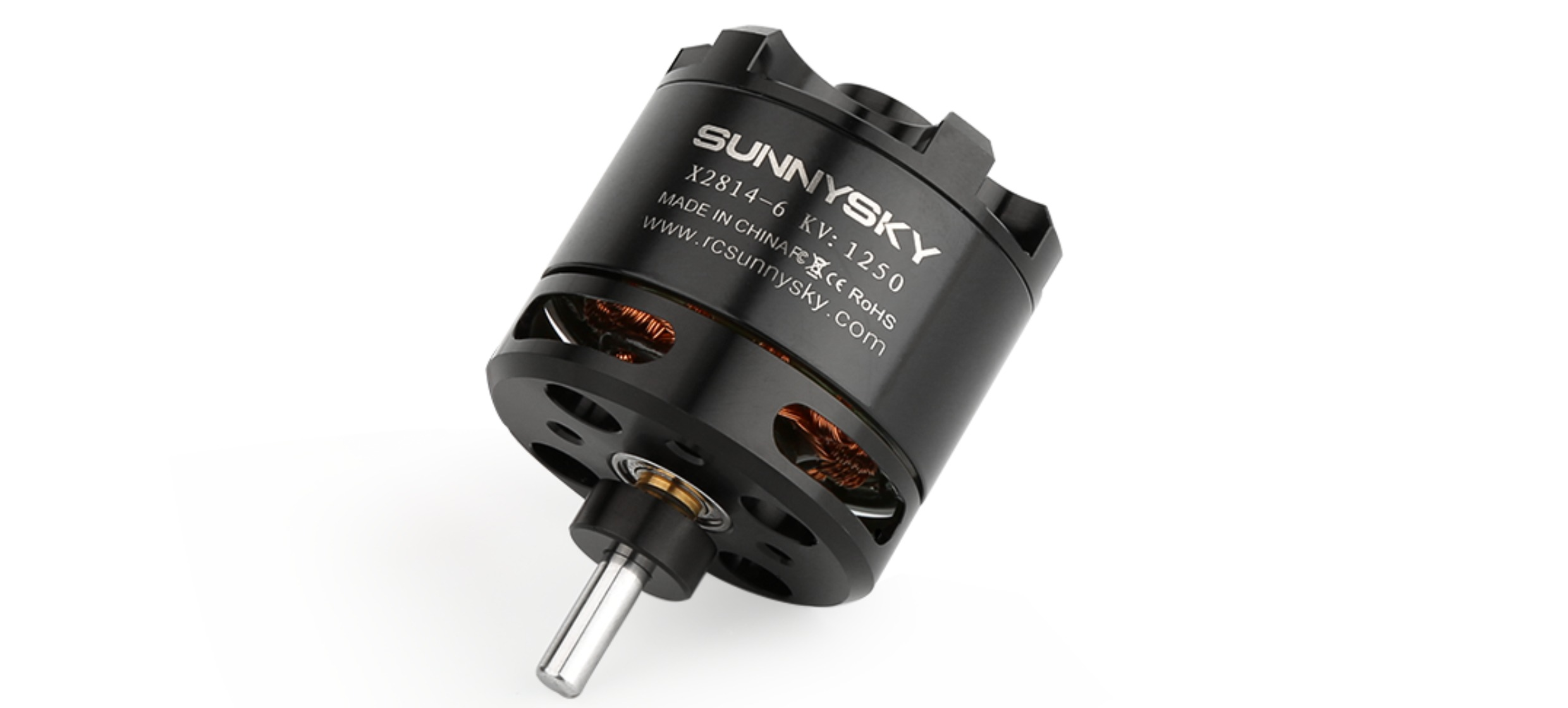

SunnySky X2814 Brushless Motors
Expected delivery within 7-15 days after payment;
Customers who can not place an order please contact us;
Specifications
X series of motors are processed by CNC milling, the hollow-designed appearance not only guarantee good heat dissipation, but also greatly reduce motor weight. In addition, it also make motors look more strong at visual.
Stainless steel solid shaft
The motor shaft is made of 420 stainless steel material imported from Japan. After heat treatment, the shafts are improved to high strength, excellent ductility, and better resistance to bending and breaking.
6061-T6 Aviation aluminum alloy
Top and bottom caps are made of high strength 6061-T6 aviation aluminum alloy, with high hardness and high strength of extension, which can ensure reliable performance of motors.
Imported NMB bearings
X series uses customized NMB mini bearings imported from Japan, which provide longer life, quiet and stable operation of these motors.
Hand wound
The coils of X motors are all hand wound. This manufacturing procedure costs much more in labor, but makes the coil tight, neat, better coil space factor, and can increase the continuous power output of motors.
KV900:
Stator Diameter | 28mm | Rotor Diameter | 35mm |
Stator Thickness | 14mm | Shaft Diameter | 4mm |
No.of Stator Slots | 12 | Body Length(Without Shaft) | 36mm |
No.of Rotor Poles | 14 | Body Length | 54mm |
Motor Kv | 900 | Max Lipo Cell | 3-4S |
No-load current | 0.7A/10V | ESC | 40A |
Motor Resistance | 52m惟 | Recommended Prop(inch) | APC13*6.5/APC13*8/APC11*8/APC11*5.5/APC11*7 |
Max Continuous Current | 40A/30s | Weight for aerobatics airplane | 1200g-1400g (3S APC13*6.5\APC13*8) (4S APC11*5.5\APC11*7\APC11*8) |
Max Continuous Power | 570W | Weight for 3D airplane | 800g-1000g (3S APC13*6.5\APC13*8) |
Weight | 108g |
Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
APC13x6.5 | 11.1 | 5 | 500 | 55.5 | 9.009009009 | 47° |
8.7 | 750 | 96.57 | 7.766387077 | |||
13 | 1000 | 144.3 | 6.93000693 | |||
18.3 | 1250 | 203.13 | 6.153694678 | |||
24.2 | 1500 | 268.62 | 5.584096493 | |||
27.6 | 1650 | 306.36 | 5.385820603 | |||
29.5 | 1750 | 327.45 | 5.344327378 | |||
APC13x8 | 11.1 | 5.3 | 500 | 58.83 | 8.499065103 | 50° |
9.2 | 750 | 102.12 | 7.344300823 | |||
14.2 | 1000 | 157.62 | 6.344372542 | |||
19.3 | 1250 | 214.23 | 5.834850394 | |||
25.9 | 1500 | 287.49 | 5.217572785 | |||
32.5 | 1770 | 360.75 | 4.906444906 | |||
APC11x7 | 14.8 | 4.7 | 500 | 69.56 | 7.188039103 | 61° |
8.1 | 750 | 119.88 | 6.256256256 | |||
12.4 | 1000 | 183.52 | 5.448997384 | |||
17 | 1250 | 251.6 | 4.968203498 | |||
22.4 | 1500 | 331.52 | 4.5246139 | |||
28.2 | 1750 | 417.36 | 4.19302281 | |||
34.4 | 2020 | 509.12 | 3.967630421 | |||
APC11x5.5 | 14.8 | 4.5 | 500 | 66.6 | 7.507507508 | 48° |
7.9 | 750 | 116.92 | 6.414642491 | |||
11.7 | 1000 | 173.16 | 5.775005775 | |||
15.8 | 1250 | 233.84 | 5.345535409 | |||
20.6 | 1500 | 304.88 | 4.919968512 | |||
25.7 | 1750 | 380.36 | 4.600904406 | |||
29.3 | 1950 | 433.64 | 4.496817637 | |||
APC11x8 | 14.8 | 5 | 500 | 74 | 6.756756757 | 59° |
8.7 | 750 | 128.76 | 5.824790308 | |||
13 | 1000 | 192.4 | 5.197505198 | |||
18.3 | 1250 | 270.84 | 4.615271009 | |||
23.7 | 1500 | 350.76 | 4.276428327 | |||
30.6 | 1750 | 452.88 | 3.864158276 | |||
37.5 | 2020 | 555 | 3.63963964 |
KV1000:
Stator Diameter | 28mm | Rotor Diameter | 35mm |
Stator Thickness | 14mm | Shaft Diameter | 4mm |
No.of Stator Slots | 12 | Body Length(Without Shaft) | 36mm |
No.of Rotor Poles | 14 | Body Length | 54mm |
Motor Kv | 1100 | Max Lipo Cell | 3-4S |
No-load current | 1.5A/10V | ESC | 50A |
Motor Resistance | 32mΩ | Recommended Prop(inch) | APC11*5.5/APC11*7/APC10*5/APC9*6 |
Max Continuous Current | 40A/30s | Weight for aerobatics airplane | 1200g-1400g (3S APC11*5.5\11*7) (4S APC9060) |
Max Continuous Power | 600W | Weight for 3D airplane | 800g-1000g (3S APC11*5.5\11*7\11*8) |
Weight | 108g | Weight for glider | 1500g (3S APC11*5.5) |
Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
---|---|---|---|---|---|---|
APC11x5.5 | 11.1 | 6 | 500 | 66.6 | 7.507507508 | 48° |
10.3 | 750 | 114.33 | 6.559958016 | |||
15 | 1000 | 166.5 | 6.006006006 | |||
20.5 | 1250 | 227.55 | 5.493298176 | |||
26.5 | 1500 | 294.15 | 5.099439062 | |||
33.1 | 1760 | 367.41 | 4.790288778 | |||
APC11x7 | 11.1 | 6 | 500 | 66.6 | 7.507507508 | 52° |
10.8 | 750 | 119.88 | 6.256256256 | |||
16.3 | 1000 | 180.93 | 5.526999392 | |||
21.8 | 1250 | 241.98 | 5.165716175 | |||
29 | 1500 | 321.9 | 4.659832246 | |||
38.5 | 1860 | 427.35 | 4.352404352 | |||
APC1050 | 11.1 | 6.3 | 500 | 69.93 | 7.15000715 | 59° |
10.9 | 750 | 120.99 | 6.19885941 | |||
16 | 1000 | 177.6 | 5.630630631 | |||
21.8 | 1250 | 241.98 | 5.165716175 | |||
25.8 | 1410 | 286.38 | 4.923528179 | |||
14.8 | 4.9 | 500 | 72.52 | 6.894649752 | ||
8.5 | 750 | 125.8 | 5.961844197 | |||
13 | 1000 | 192.4 | 5.197505198 | |||
17.8 | 1250 | 263.44 | 4.744913453 | |||
22.5 | 1500 | 333 | 4.504504505 | |||
28.3 | 1750 | 418.84 | 4.178206475 | |||
34.9 | 2000 | 516.52 | 3.872066909 | |||
40.3 | 2230 | 596.44 | 3.738850513 | |||
APC9060 | 14.8 | 5.6 | 500 | 82.88 | 6.032818533 | 48° |
9.8 | 750 | 145.04 | 5.170987314 | |||
14.9 | 1000 | 220.52 | 4.534736078 | |||
20.1 | 1250 | 297.48 | 4.201963157 | |||
26.7 | 1500 | 395.16 | 3.795930762 | |||
32.8 | 1750 | 485.44 | 3.604976928 | |||
38.5 | 1910 | 569.8 | 3.352053352 |
KV1250:
Stator Diameter | 28mm | Rotor Diameter | 35mm |
Stator Thickness | 14mm | Shaft Diameter | 4mm |
No.of Stator Slots | 12 | Body Length(Without Shaft) | 36mm |
No.of Rotor Poles | 14 | Body Length | 54mm |
Motor Kv | 1250 | Max Lipo Cell | 3-4S |
No-load current | 2.1A/10V | ESC | 70A |
Motor Resistance | 25mΩ | Recommended Prop(inch) | APC9060/APC8060 |
Max Continuous Current | 55A/15s | Weight for aerobatics airplane | 1000g-1300g (4S APC9060\APC8060) |
Max Continuous Power | 880W | ||
Weight | 108g |
Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
---|---|---|---|---|---|---|
APC8060 | 14.8 | 8 | 500 | 118.4 | 4.222972973 | 60° |
13.9 | 750 | 205.72 | 3.645732063 | |||
21.2 | 1000 | 313.76 | 3.187149414 | |||
29.2 | 1250 | 432.16 | 2.892447242 | |||
39.3 | 1500 | 581.64 | 2.578914793 | |||
49.7 | 1770 | 735.56 | 2.406329871 | |||
APC9060 | 6.4 | 500 | 94.72 | 5.278716216 | 72° | |
11 | 750 | 162.8 | 4.606879607 | |||
16.7 | 1000 | 247.16 | 4.04596213 | |||
22.7 | 1250 | 335.96 | 3.720681033 | |||
28.9 | 1500 | 427.72 | 3.506967175 | |||
36.3 | 1750 | 537.24 | 3.257389621 | |||
45.8 | 2000 | 677.84 | 2.950548802 | |||
59.8 | 2360 | 885.04 | 2.666546145 |
KV:1450
Specifications | |
Stator Diameter | 28mm |
Stator Thickness | 14mm |
No.of Stator Slots | 12 |
No.of Rotor Poles | 14 |
Motor Kv | 1450 |
NO-Load Current(A/10V) | 2.1A |
Motor Resistance | 18mΩ |
Max Continuous Current | 86A/15s |
Max Continuous Power | 1440w |
Weight | 109g |
Rotor Diameter | 35mm |
Body Length | 36mm |
Max Lipo Cell | 4S |
ESC | 130A |
Recommend Prop(inch) | 7060 8060 |
Prop (inch) |
Volts (V) |
Amps (A) |
Thrust(g) | Watts (W) |
Efficiency (g/W) |
RPM | LOAD TEMPERATURE IN 100% THROTTLE |
7060 | 14.8 |
3.9 8.9 14.6 20.7 28.2 37.1 43.1 |
250 500 750 1000 1250 1500 1660 |
57.72 131.72 216.08 306.36 417.36 549.08 637.88 |
4.33 3.80 3.47 3.26 3.00 2.73 2.60 |
7544 10670 12683 14609 16042 17703 18342 |
|
16.8 |
3.5 8.1 13.3 19.4 25.4 33.9 41.2 |
250 500 750 1000 1250 1500 1750 |
58.8 136.08 223.44 325.92 426.72 569.52 692.16 |
4.25 3.67 3.36 3.07 2.93 2.63 2.53 |
7561 10650 12675 14704 16004 17592 18796 |
||
54.1 1930 908.88 2.12 20064 | 70℃ | ||||||
8060 | 14.8 |
3.4 7.6 13.4 19.9 28 37.9 51.7 68.7 |
250 500 750 1000 1250 1500 1750 2100 |
50.32 112.48 198.32 294.52 414.4 560.92 765.16 1016.76 |
4.97 4.45 3.78 3.40 3.02 2.67 2.29 2.07 |
5942 8202 10115 11416 12650 13760 14720 16027 |
|
16.8 |
3 6.8 12 18 25.1 33.8 45.1 57.8 |
250 500 750 1000 1250 1500 1750 2000 |
50.4 114.24 201.6 302.4 421.68 567.84 757.68 971.04 |
4.96 4.38 3.72 3.31 2.96 2.64 2.31 2.06 |
5922 8266 10070 11450 12678 13757 14736 15771 |
||
85.8 2450 1441.44 1.70 17301 | 80℃ |
