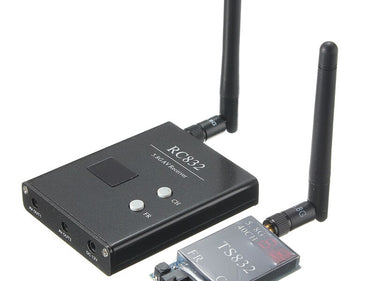

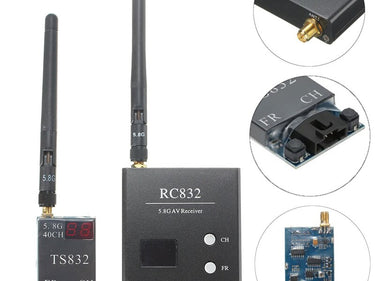

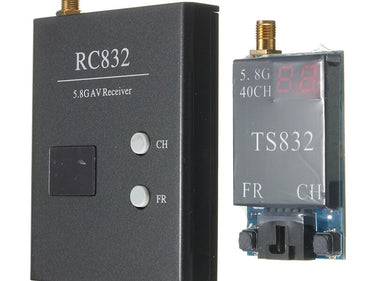

TS832/TS5823/TS5828 RECEIVER & TRANSMITTER

$15.99 Sold out
Shipping calculated at checkout.
34472196-1pc-ts832
Color: 1PC-TS832

Specifications:

Video format supported: NTSC/PAL
Antenna connection: RP-SMA, jack (module side, both TX and RX)

RC832 Receiver Feature:
48 channels: Cover A, B, C,D,H,L 6 bands and all frequencies compactable.
Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching.
Two digits display: one for CH and the other for FR, real-time positioning which frequency band and which channel received.
Power off memory: Replay the very last frequency band and channel.
Independent video and audio signal outputs.

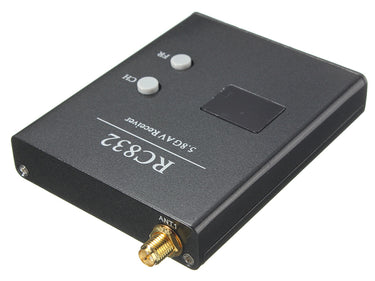

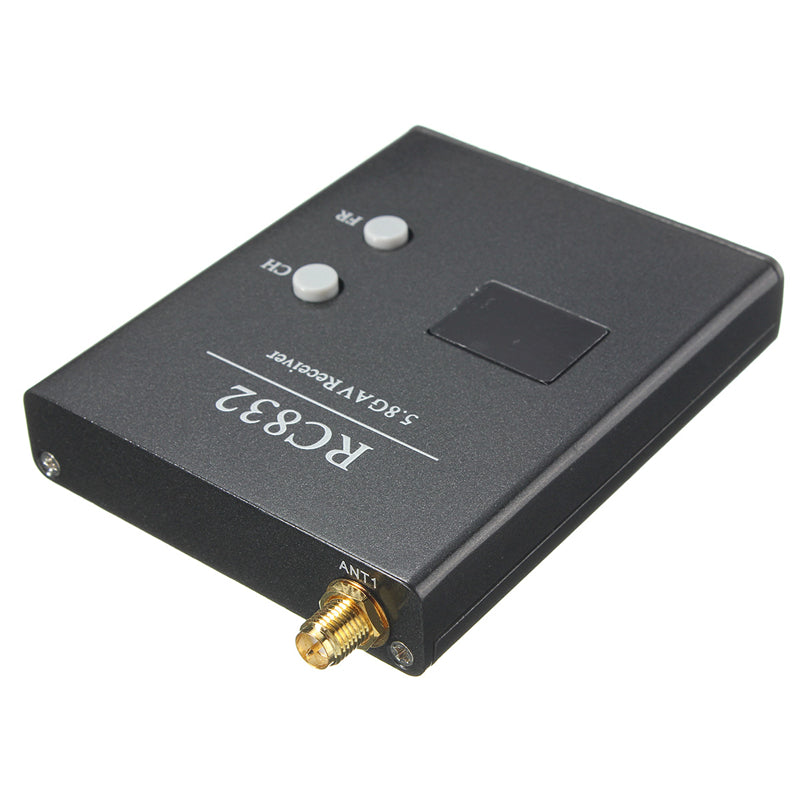

Receiver RC832:
Channel:48CH
Power input: DC 12V
Consumption current: 200mA max
Antenna Input Impedance  50Ohm
Antenna Connecter:SMA
Antenna Gain: 2dBi
Rx Sensitivity:-90dBm
Video Outout Level: 75
Audio Outout Level:10
Video format: NTSC/PAL auto
Dimension: 80x 65 x15mm
Weight  85g


TS832 Transmitter Features:
This is 40-channel transmitter of 5.8G 600mW A/V wireless system.
40 channels: Cover A, B, E, F and G band (Air wave band).
Digital phase-locked loop circuit, no channel drift issues.
Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching.
Wireless transmission distance up to 800 meters without any obstacles and interfering signal( Actual transmission distance depends on specific environment).
Small size, light weight, easy to carry
This item is only can transmit the picture and video without voice.

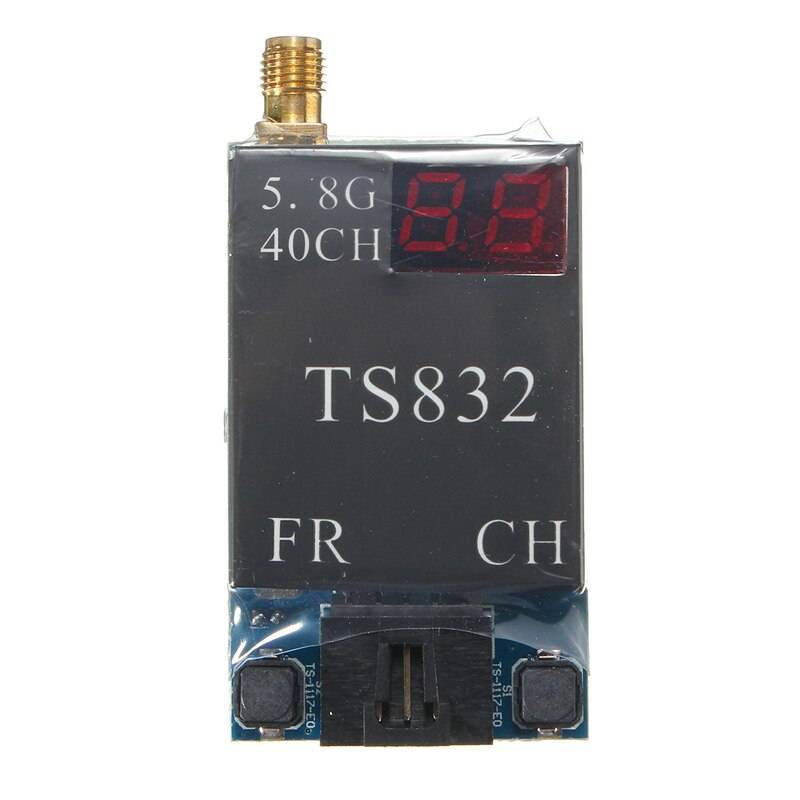

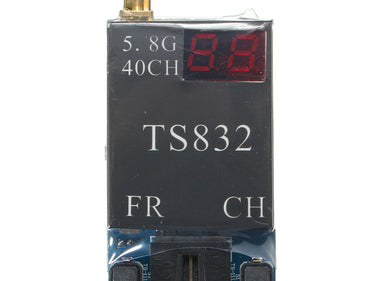

Transmitter TS832 :
Channel:40CH
Operating Temperature: -10~+85
Frequency: 5.8G
Transmitting Power: 600mA
Operating Volatge: 7-16V
Video Format: NTSC / PAL Auto
Working Current: 220mA/ 12V
Audio Bandwidth : 6.5MHz
Video Bandwidth: 8MHz
Audio Input Impedance  10K Ohm
Video Input Impedance  75 Ohm
Dimension: 54x 32x 10mm(excluding antenna)
Weight  22g


Frequency Range:
FR1 5865,5845,5825,5805,5785,5765,5745,5725
FR2 5733,5752,5771,5790,5809,5828,5847,5866
FR3 5707,5685,5665,5645,5885,5905,5925,5945
FR4 5740,5760,5780,5800,5820,5840,5860,5880
FR5 5658,5695,5732,5769,5806,5843,5880,5917

TS5828 Specifications:
Transmitting unit weight: 7.3g (excluding antenna)
video format supported: NTSC/PAL
Working frequency: 5645-5945Mhz
Power input: 7-24V
Transmitting current: 190mA 12V
Video band width: 8M
Audio coding: 6.5M
Dimension: 30*20*8mm (excluding antenna)

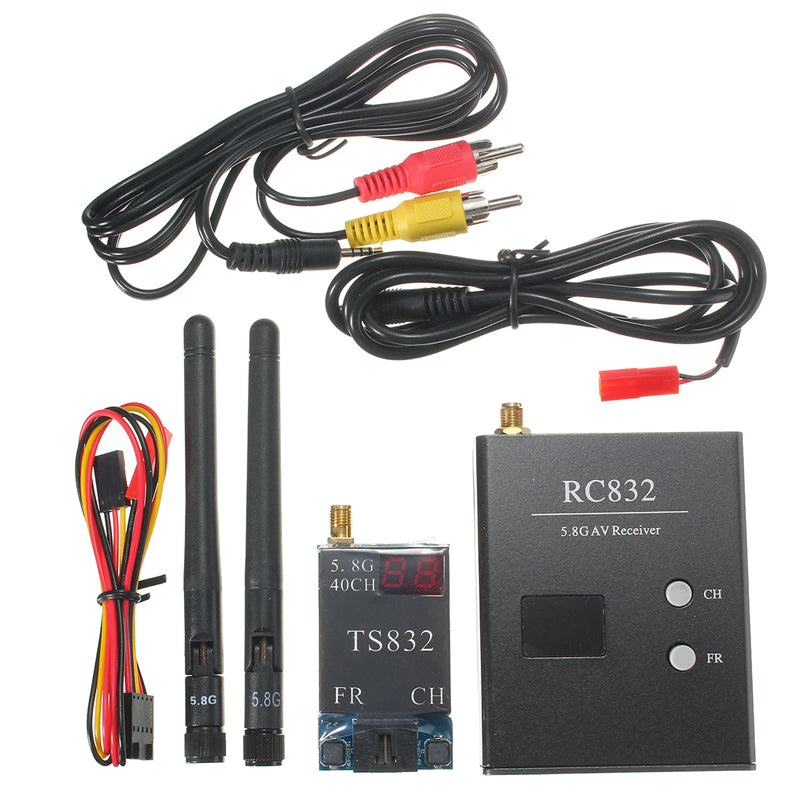

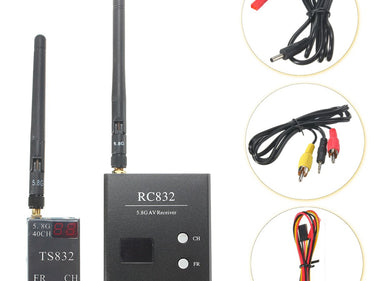

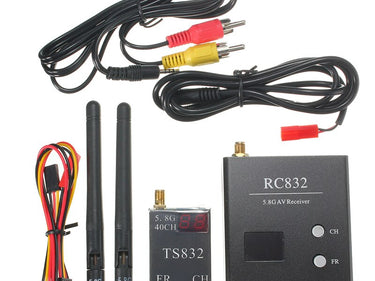

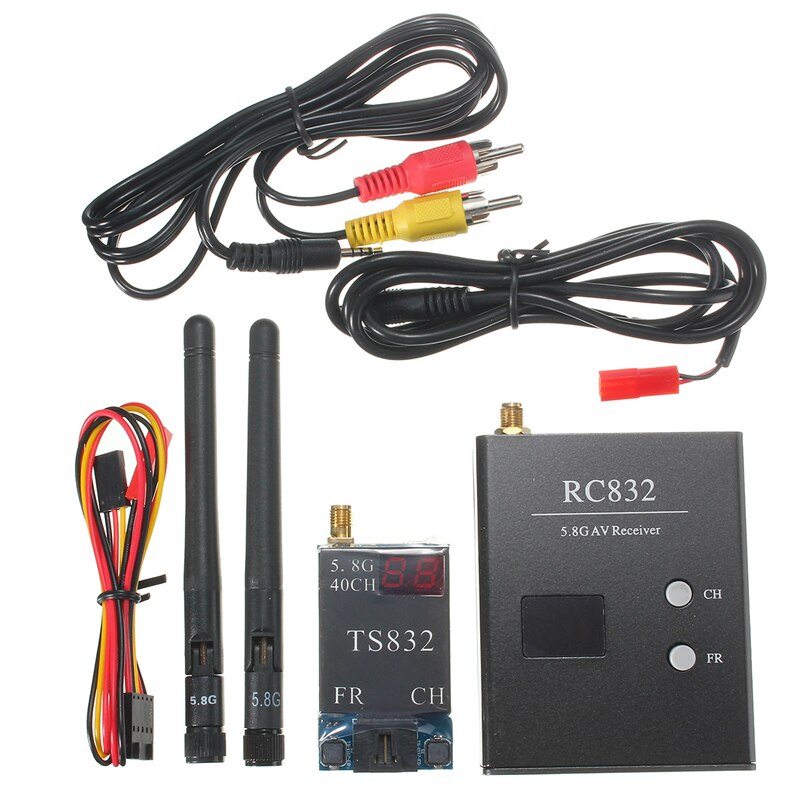

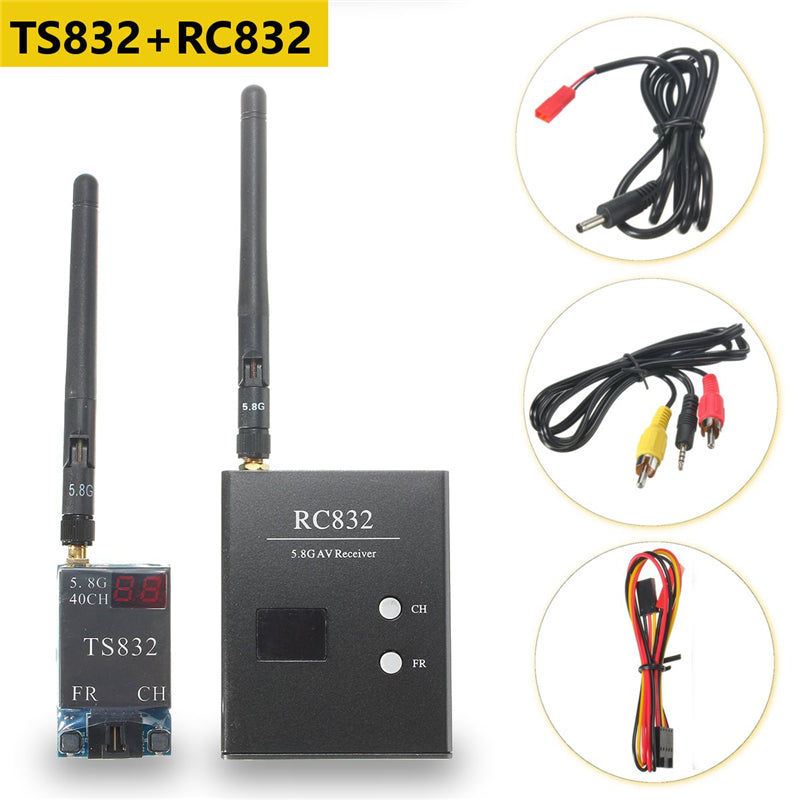

Package Contents:
1 x TS382 Transmitter
1 x RC832 Receiver
2 x 5.8G Antenna

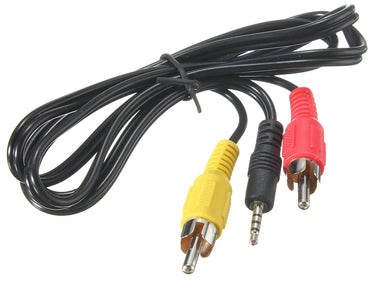

3 x Cable
1 x User manual
